Camera Parameter |
|
|

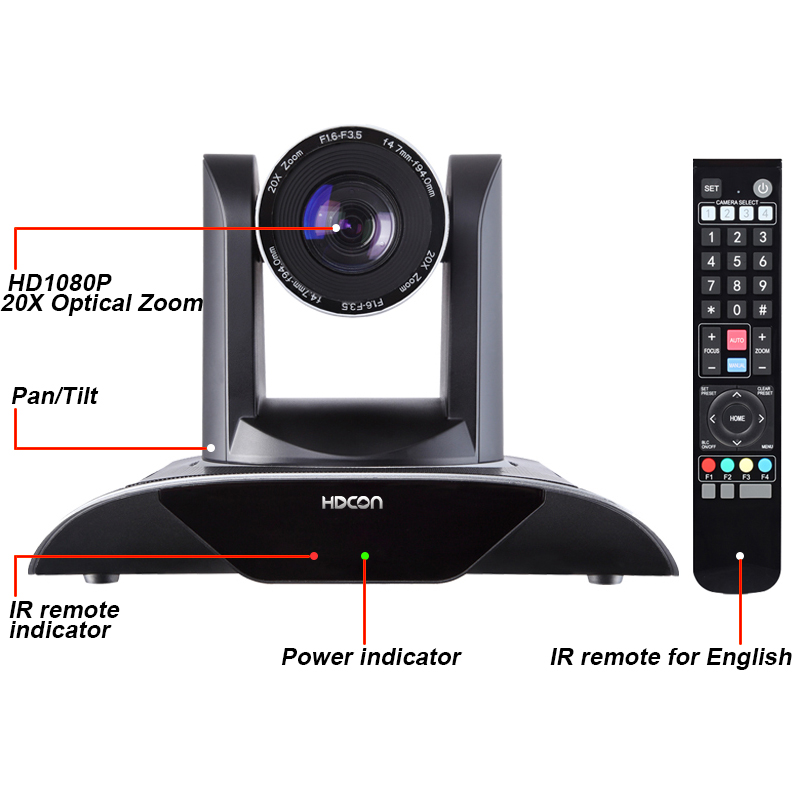

Optical Zoom |
20X, f=5.5~110mm |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
Effective Pixels |
16: 9, 5megapixel |
|
Video Format |
DVI(HDMI-compatible)/SDI video format |
|
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|
|
View Angle |
3.3°(tele)–54.7°(wide) |
|
AV |
F1.6~F3.5 |
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
DNR |
2D & 3D DNR |
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
|
Focus |
Auto/Manual |
|
WDR |
OFF/ Dynamic level adjustment |
|
Video Adjustment |
Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
|
SNR |
>55dB |
|

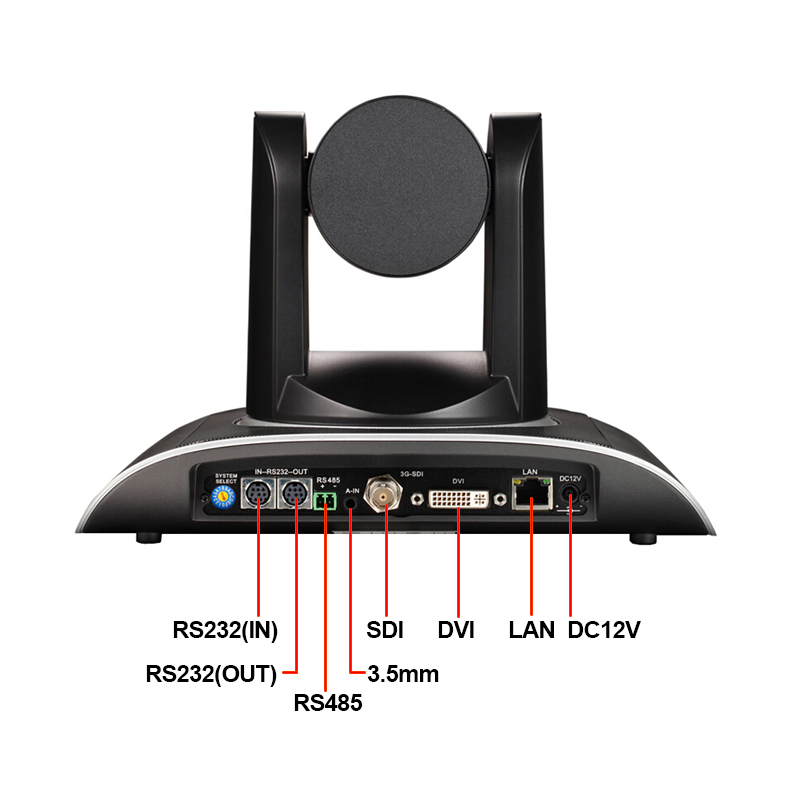

Input/Output Interface |
|
|
Video Interfaces |
3G-SDI,DVI(HDMI-compatible),LAN,RS232(IN/OUT),RS485,A-IN |
|
Image Code Stream |
Dual stream output |
|
Video Compression Format |
H.264, H.265 |
|
Control Signal Interface |
RS-232 Ring through RS232 output |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
Audio Input Interface |
Double track 3.5mm linear input |
|
Audio Compression Format |
AAC/MP3/PCM Audio compression |
|
HD IP Interface |
100M IP port(100BASE-TX),Support Visca protocol control through IP port |
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181 |
|
Power Interface |
HEC3800 outlet (DC12V) |
|
PTZ Parameter |
|
|

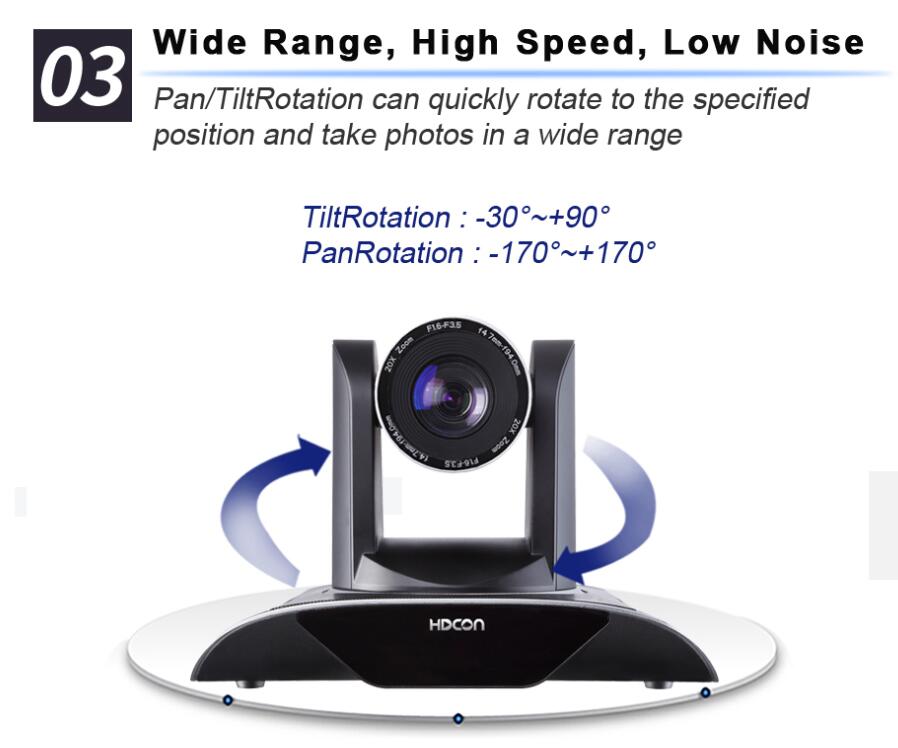

Pan Rotation |
±170° |
|
Tilt Rotation |
-30°~+90° |
|
Pan Control Speed |
0.1 -100°/sec |
|
Tilt Control Speed |
0.1-45°/sec |
|
Preset Speed |
Pan: 100°/sec,Tilt: 45°/sec |
|
Preset Number |
255 presets (10 presets by remote controller) |
|
Other Parameter |
|
|
Supply Adapter |
AC110V-AC220V to DC12V/1.5A |
|
Input Voltage |
DC12V±10% |
|
Input Current |
1A(Max) |
|
Consumption |
12W (Max) |
|
Store Temperature |
-10℃~+50℃ |
|
Dimension |
258(W)x172(H)x168(D)mm / 350(W)x260(H)x275(D)mm before/after packaging |
|
Weight |
1.54kg/2.87kg (Net/Gross weight) |
|
Remote Operation (IP) |
Remote Upgrade,Reboot and Reset |
|

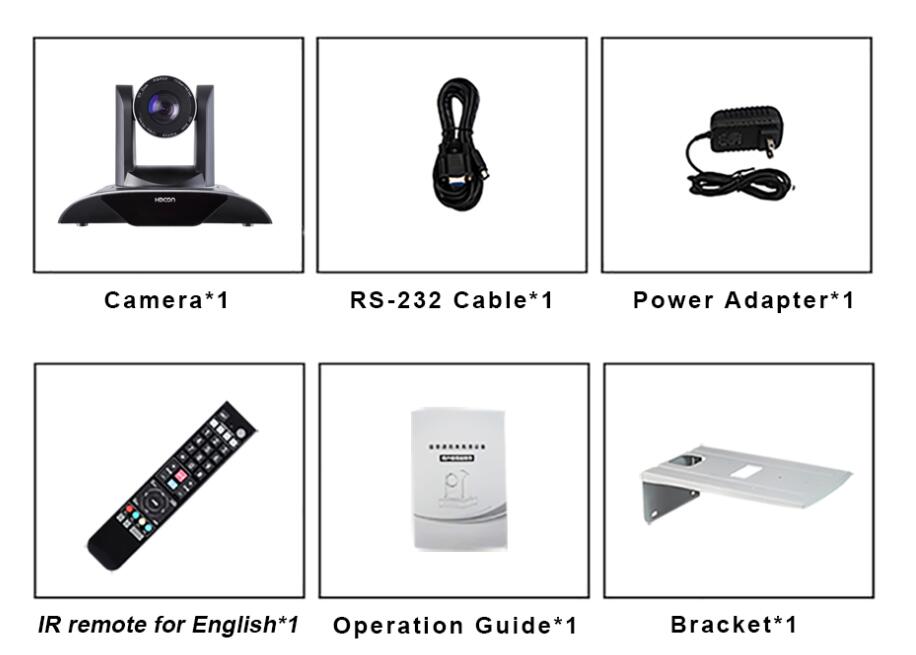

Accessory |
power supply,RS232 control cable,remoter,manual,warranty card,bracket(optional) |
The abbreviation of Pan/Tilt/Zoom, the concept of security monitoring equipment, represents the omni-directional (left and right/up and down) movement of the pan/tilt and the zoom and zoom control of the lens. This word is usually mentioned, and it can be easily understood as PTZ control.
In the scene range monitored by the camera, when a moving target appears, the user can manually lock it (for example, by clicking the mouse to lock the target) or the preset position automatically triggers and locks a moving target to trigger the PTZ camera to perform autonomous and automatic PTZ tracking. And automatically control the PTZ camera’s pan-tilt to rotate in all directions, and perform visual-oriented automatic tracking of the locked moving target to ensure that the tracking target continues to appear in the center of the lens. The automatic PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
