Camera
|
|
|
Image Sensor
|
1/2.6’’ CMOS Image Sensor
|
|
Min. Illumination
|
Color: 0.1Lux @F1.2, B/W:0.01Lux with IR on
|
|
WDR
|
ON/OFF
|
|
Lens
|

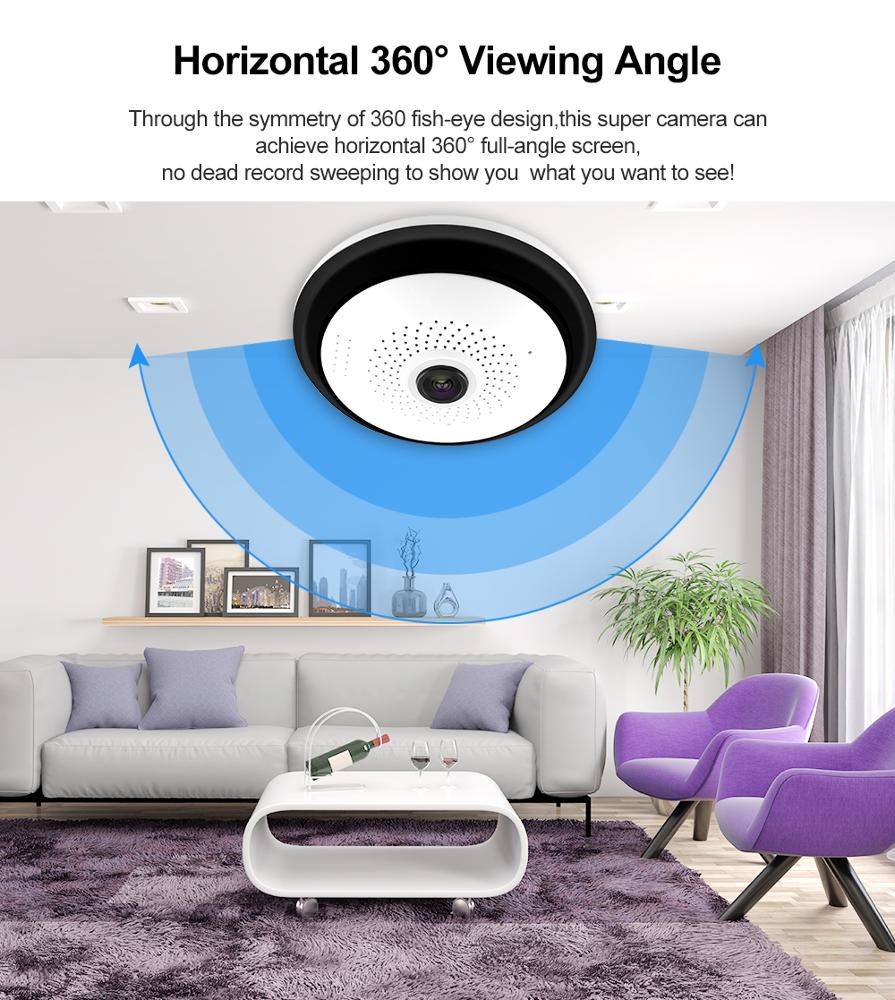

360 Degree lens
|
|
Shutter Time
|
default
|
|
IR Distance
|
adjustable
|
|
BLC
|
Default
|
|
HLC
|
Default
|
|
Video
|
|
|
Max Image Resolution
|
1536*1536@25/30fps
|
|
Frame Rate
|
Main stream: 1536*1536
|
|
Video Compression
|
Support H.264 Main Profile & H.264 Baseline
|
|
Video Bit Rate
|
32Kbps-6144Kbps support self-adjustable, default 1536Kbps
|
|
Image Settings
|
Brightness, Contrast, Saturation, Exposure Adjustable
|
|
Bit Superposition
|
Support OSD name, time and date information superposition
|
|
Audio
|
|
|
Audio I/O
|
Two-way audio, built-in microphone and speaker
|
|
Audio Compression
|
G.711
|
|
Network
|
|
|
Communication
|
NO
|
|
Network Protocols
|
TCP/IP,ARP,IGMP,SMTP,FTP,DHCP,DNS, DDNS,NTP,UPNP,RTSP
|
|
Wifi
|
Wifi 802.11b/g/n
|
|
ONVIF
|
ONVIF2.4
|
|
System
|
|
|
Alarm I/O
|
Motion detection Alarm
|
|
Storage
|

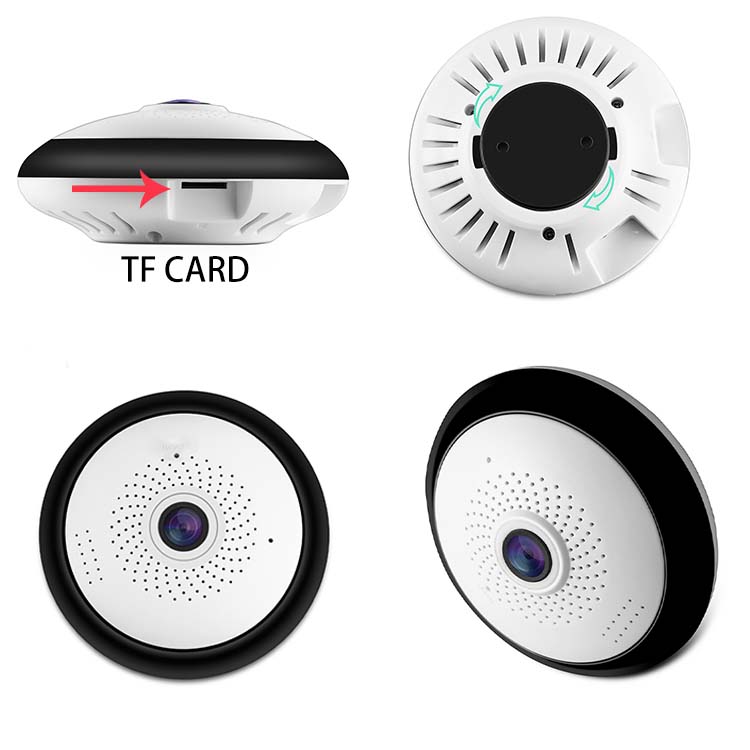

Max support 128G SD card, timing video storage, motion detection video storage
|
|
Motion Detection
|
4 windows motion detection areas can be setting (sensitivity setting 1-100)
|
|
Video Mask
|
4 windows can be built to mask your private area
|
|
Action with Alarm
|
The alarm pictures be sent to appoint mailbox, the picture and video be upload to FTP server
|
|
APP
|
Support android,IOS
|
|
General
|
|
|
Working Temperature
|
-10°C-60°C
|
|
Working Humidity
|
10-95%(Non-condensing)
|
|
Power Supply
|
DC 5V2A
|
|
Power Consumption
|
4W
|
|
Working Humidity
|
Relative humidity less than 90%
|
|
Language Support
|
CHN(S)/ENG
|
|
Cover Color
|
White
|
1. QUESTION: How do I fix it if I can’t connect and there’s no ding-dong sound?
ANSWER: If the ding-dong sound is not emitted, the camera needs to be restored to factory settings manually, With a silver pin
inserted into the camera Reset hole inside about 8S to hear the reset tone after releasing .
2. QUESTION: How do I fix wireless pairing failure?
ANSWER: In the process of wifi pairing, the phone and camera should be close to each other, and the wireless name and password
should not appear special symbols and Chinese characters, or the pairing will fail.
3. QUESTION: The camera shows online, but can not be displayed when click in to watch,how to solve it?
ANSWER: It’s the network that’s causing the connection buffering, just reboot the router and camera.
4. QUESTION: How to solve the problem of AP hotspot not being searchable?
ANSWER: A.If you can’t find the equipment hotspot, first check if there is a network cable connected to the network port on the tail line, you need to unplug the cable and reboot before the hotspot can appear.
B. If there is no hotspot after unplugging and rebooting, you need to restore the factory settings of the device manually. Press and hold the tail-wire reset button for about 10 seconds, release it and the reset is successful, wait for about 40S before the hotspot appears after reset.
5. QUESTION: How to fix unsuccessful WIFI connection problem?
ANSWER: A. During WIFI setup, the camera should be close to the router and the router should be working normally. The wifi name and password can not have special symbols and Chinese characters, otherwise the configuration will not work.
B. Can’t connect to a 5G wifi network.
