System
|
Main processor
|
Hi3536D
|
|
Operating System
|
Embedded Linux
|
|
|
Video
|
Video compression
|
H.265 High Profile/ H.264 Main Profile
|
|
Video output
|
720P60,XGA,1080P60
|
|
|
Video input(IP)
|
4*1080P/4*960P/4*720P
|
|
|
Audio
|
Audio compression
|
G.711
|
|
intercom
|
None
|
|
|
Record & playback
|
Recording mode
|
Manual/Alarm/Video Detection/Continuous
|
|
Local Playback
|
4*1080P
|
|
|
Storage & Backup
|
Record Storage
|
network
|
|
Backup mode
|
Network backup, USB hard disk
|
|
|
Network Control
|
Protocol
|
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
|
|
Wireless
|
Frequency
|
2.4G
|
|
Antenna Structure
|
2 × 2MIMO
|
|
|
Distance
|
More than 800 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the
situation |
|
|
Interface
|
Video output
|
1ch HDMI, 1ch VGA output
|
|
Audio I/O
|
None
|
|
|
Alarm I/O
|
None
|
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
|
USB
|
2*USB 2.0 port
|
|
|
Hard disk
|
1 SATA(Up to 4TB)
|
|
|
Oter
|
Power supply
|
DC +12V /2A
|
|
Power Consumption
|
5W（Without HDD）
|
|
|
Work environment
|
Temperature:-10℃－＋55℃, Humidity:10%-90%RH
|
|

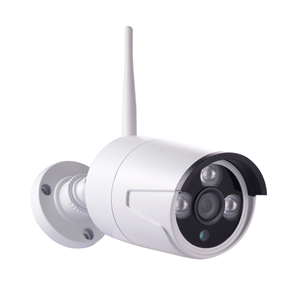

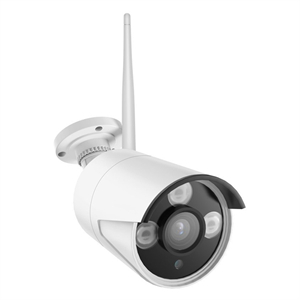

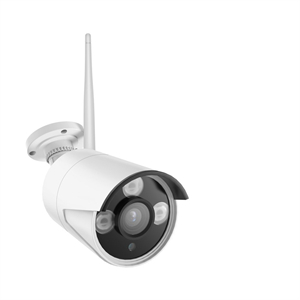

Image sensor
|
1/2.9″ 2.0M Pixel CMOS
|
|
Lens
|
4 mm, horizontal field of view: 75°
|
|
Lens Mount
|
M12
|
|
Min. Illumination
|
Color：0.01Lux@(F1.2，AGC ON)
B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
|
S / N ratio
|
≥39dB
|
|
Shutter speed
|
1/5 – 1/20,000s，
|
|
Day & Night
|
Day / Night / External control（IR Cut Filter）
|
|
AGC
|
Auto / Manual
|
|
White balance
|
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
Wide dynamic range
|
Digtal Wide dynamic range
|
|
Digital noise Reduction
|
2DNR,3DNR
|
|
Video Compression
|
H.265 Main Profile/H.264 Main Profile/M-JPEG
|
|
Audio Compression
|
G711，PCM
|
|
Max.Image Resolution
|
1920×1080@20fps
|
|
Image Resolution
|
Main stream （1920×1080、1280×960、1280×720、720×576、640×480）
|
|
sub-stream （640×480、352×288、320×240、176×144）
|
|
|
Output bit rate
|
CBR/VBR, bitrate：32Kbps~10Mbps variable
|
|
Motion detect
|
Support
|
|
Privacy Zone Masking
|
4 privacy masks programmable
|
|
P2P
|
Android、IOS
|
|
Protocols
|
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
|
|
Onvif
|
Non- Support
|
|
Wireless
|
Frequency:2.4G
|
|
Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission
distance according to the situation |
|
|
Power
|
12VDC@0.12A
|
|
Dimensions
|
38x38x5mm
|
|
Working Temperature
|
-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)
|
In recent years, with the rapid development of IP networks, the video surveillance industry has also entered the era of full networking. The video surveillance industry in the networked era is gradually showing the characteristics of the IT industry. As the core product of networked surveillance, NVR (Network Video Recorder) has essentially become an IT product. The main function of NVR is to receive the digital video stream transmitted by IPC (network camera), DVS (video encoder) and other equipment through the network, and store and manage it.
To put it simply: NVR (NETWORK VIDEO RECORDER), also known as network video recorder, is a type of video recording equipment that is used in conjunction with a network camera or video encoder to realize the recording of digital video transmitted over the network. Its core value lies in video middleware. Through video middleware, it is widely compatible with the encoding formats of different digital devices of various manufacturers, so as to realize the advantages of distributed architecture and componentized access brought by networking.
