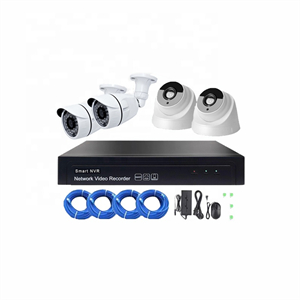

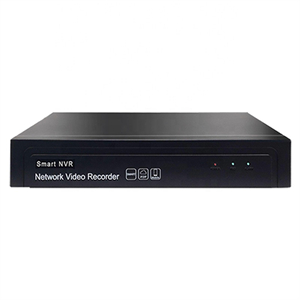

NVR Specifications
|
||
|
Video
|
||
|
Video Format:
|
NTSC or PAL
|
|
|
Video Inputs:
|
4chs 5MP IP POE Camera
|
|
|
Video Outputs:
|
HDMI, VGA
|
|
|
Recording
|
||
|
Compression Format:
|
H.265
|
|
|
Recording Resolution:
|
5MP
|
|
|
Recording Modes:
|
Manual/Motion/Schedule
|
|
|
Hard drive:
|
1 SATA hard drive required for recording, support up to 8TB
|
|
|
Network
|
||
|
LAN Connection:
|
YES
|
|
|
Network Interface:
|
RJ45
|
|
|
General
|
||
|
Power Supply:
|
DC52V 1.5A
|
|
|
Back up method:
|
External storage via USB
|
|
|
Mouse support:
|
YES
|
|
|
Remote Control:
|
YES
|
|
|
NVR Language
|
||
|
Russian, English, Farsi, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Hebrew,Turkey
Romanian, Slovakia, Czech, Arabic, Swedish and so on |
||
|

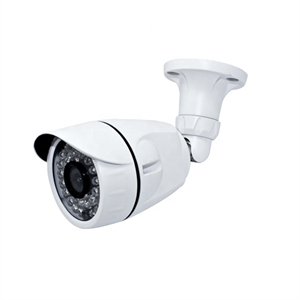

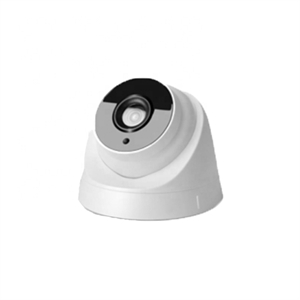

Cameras Specifications
|
||
|
Video
|
||
|
Image Sensor:
|
XM530AI+F37
|
Hi3516EV200+IMX307
|
|
Video quality:
|
2MP(1920*1080)
|
|
|
Lens:
|
3.6/6mm lens
|
|
|
Day/Night Mode:
|
Color during day/switches to B&W at night
|
|
|
Audio
|
||
|
Microphone:
|
N/A
|
|
|
Audio Range:
|
N/A
|
|
|
Night Vision
|
||
|
IR distance
|
20/30m
|
|
|
IR Cut Filter:
|
Yes
|
|
|
Number of IR LEDS:
|
24pcs ir leds for dome, 36pcs ir leds for bullet
|
|
|
General
|
||
|
Indoor/Outdoor:
|
Suitable for Indoor or Outdoor use
|
|
|
Operating Temperature:
|
-40C – +50C
|
|
|
Operating Power:
|
Powered by NVR
|
|
|
Body Construction:
|
Bullet with Built-in Wall Mount/ Dome Ceilling Mount
|
|
|
Color:
|
White Color
|
|
What is the difference between a POE camera and a non-POE camera?
- POE camera
The POE camera can supply power to the camera through the network cable. Only one network cable is needed for power supply, which can transmit data and current at the same time, and the power supply signal is available.
This POE can eliminate the need to arrange cables and power strips, and the camera deployment point can be selected in a variety of ways, which is not limited by the power supply. And the advantages of centralized power supply can be realized. At the same time, it has energy saving, safety, lightning protection and so on.
- Non-POE camera
Non-POE power supply means that each camera has a separate power supply.
It is generally recommended to use non-POE power supply for long distances, and POE can be considered for short distances.
