product description
|
|
|
Product name
|

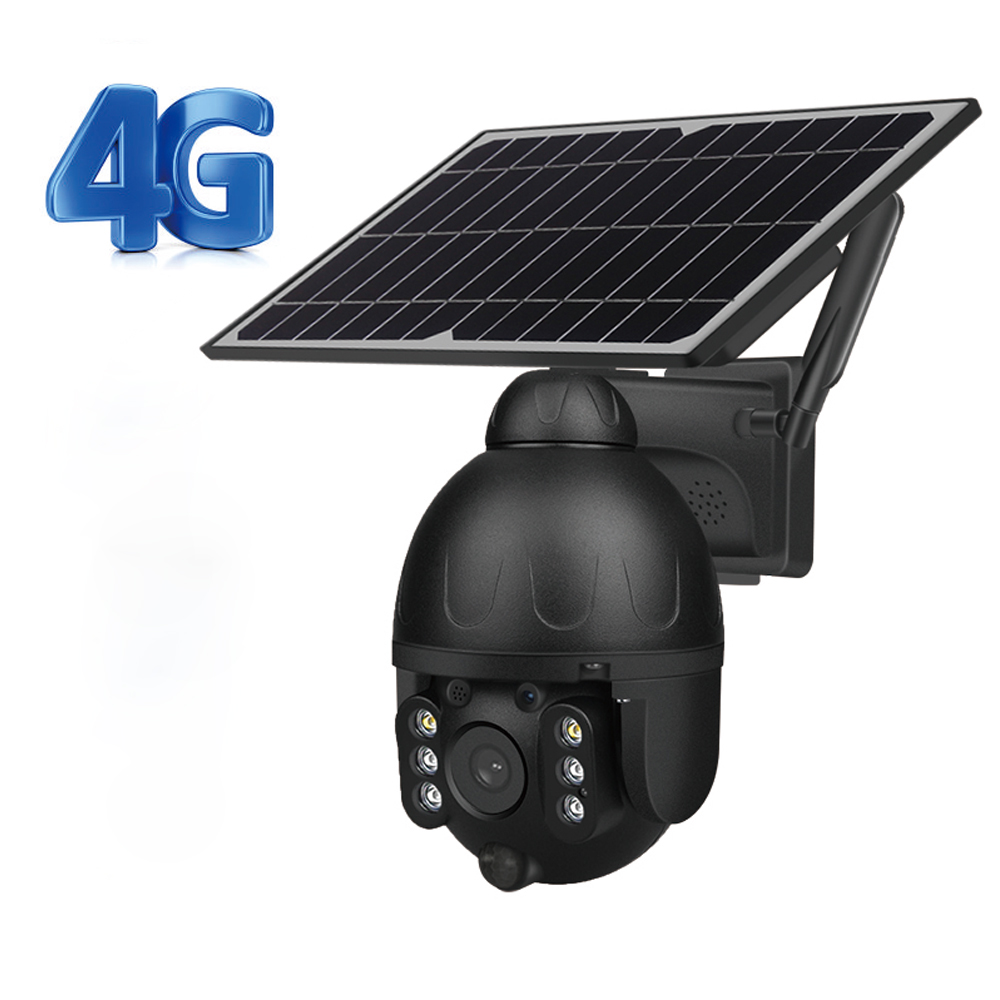

Solar 4G Security Smart PTZ Camera
|
|
|
Model
|
PTZ-588-2M-TD-4G
|
|
|
Comprehensive
|
Master chip
|
HI3518E
|
|
APP operating system
|
Android, IOS Ubox APP
|
|
|
Sensor
|
1/2″ Image Sensor PS5280LT
|
|
|
Compression format
|
H.264+/H.265
|
|
|
Pixel
|
1920*1080 1080P
|
|
|
Networking method
|
4G
|
TD-LTE, TD-LTE / LTE FDD TD-LTE / LTE-FDD (Full Netcom)
|
|

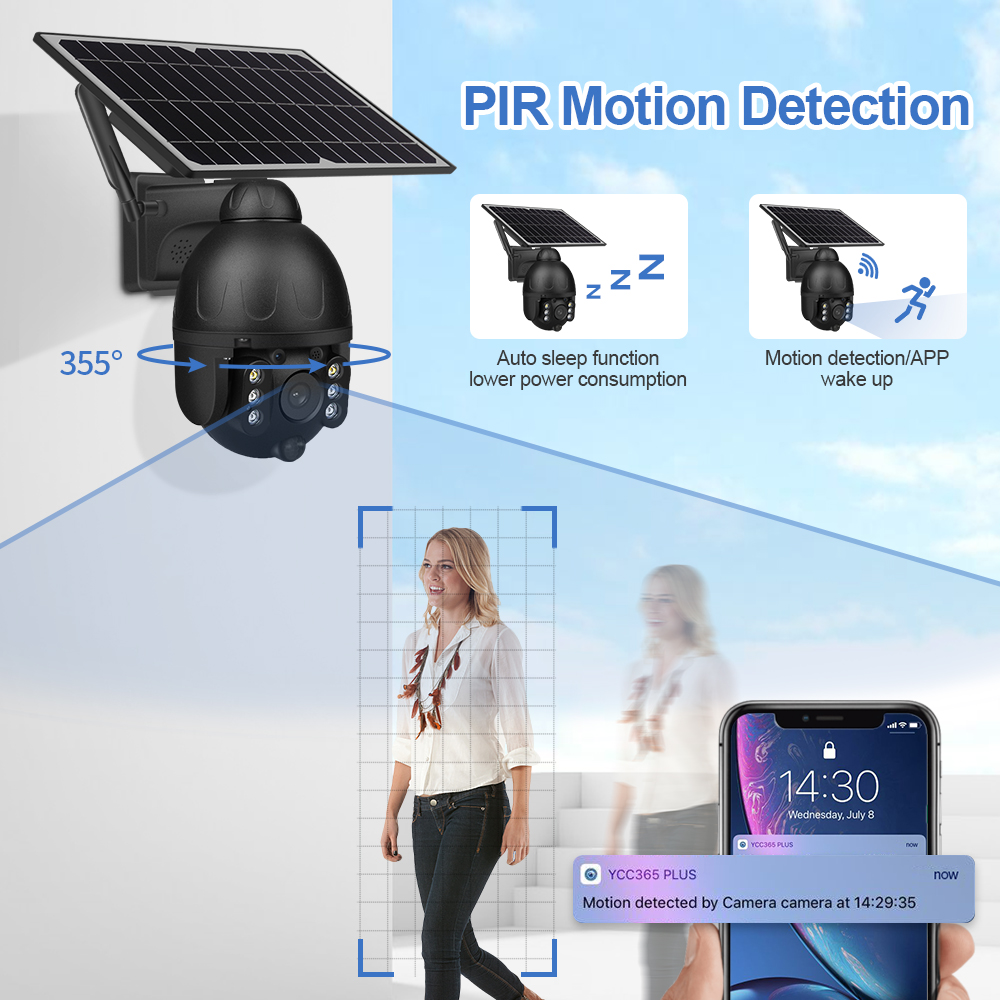

Alarm mode
|
Detection mode
|
PIR + radar dual induction detection
|
|
Detection distance
|
0~12M
|
|
|
Detection angle
|
120°
|
|
|
Alarm method
|
Double induction confirmation push alarm message to mobile phone
|
|
|
PTZ
|
PTZ angle
|
Horizontal 350° vertical 180°
|
|
Rotating speed
|
Horizontal 55°/sec Vertical 40°/sec
|
|
|
Night Vision Mode
|
Full color night vision
|
Illumination 0.00001LUX
|
|
Infrared light
|
Infrared LED distance 30M 2pcs
|
|
|
White light
|
White LED distance 30M 6pcs
|
|
|
Sound
|
Built-in speaker
|
3W
|
|
Built-in microphone
|
Monitoring range 20M
|
|
|
Lens
|
Focal length
|
3.6mm
|
|
Angle
|
85°
|
|
|
Storage
|
Cloud storage
|
Cloud storage (alarm recording)
|
|
Local storage
|
TF card (max 128G)
|
|
|

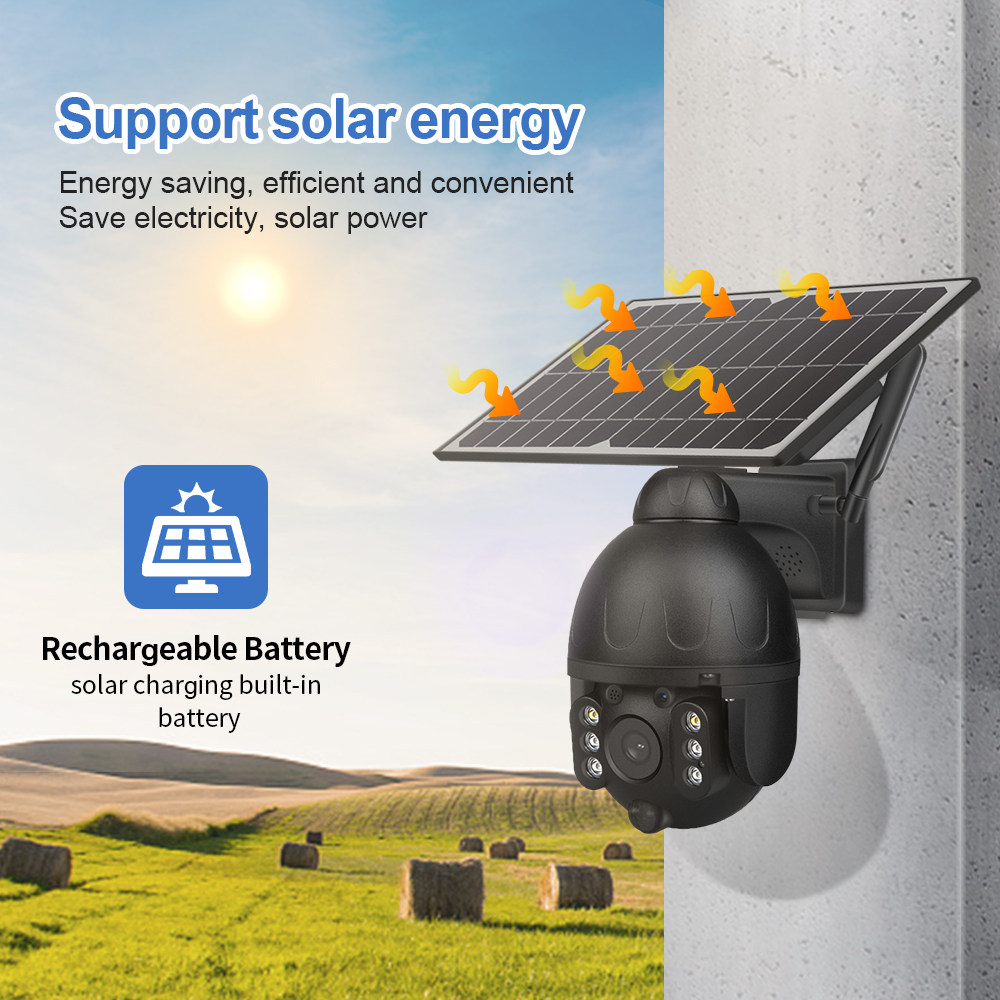

Power supply
|
Power supply mode
|
Solar +18650 battery
|
|
Solar cell power
|
8W
|
|
|
Battery capacity
|
Maximum support 6 18650 batteries(6*3000MA=18000MA)
|
|
|
Maximum working power
|
4W
|
|
|
Standby power
|
0.003W
|
|
|
Other
|

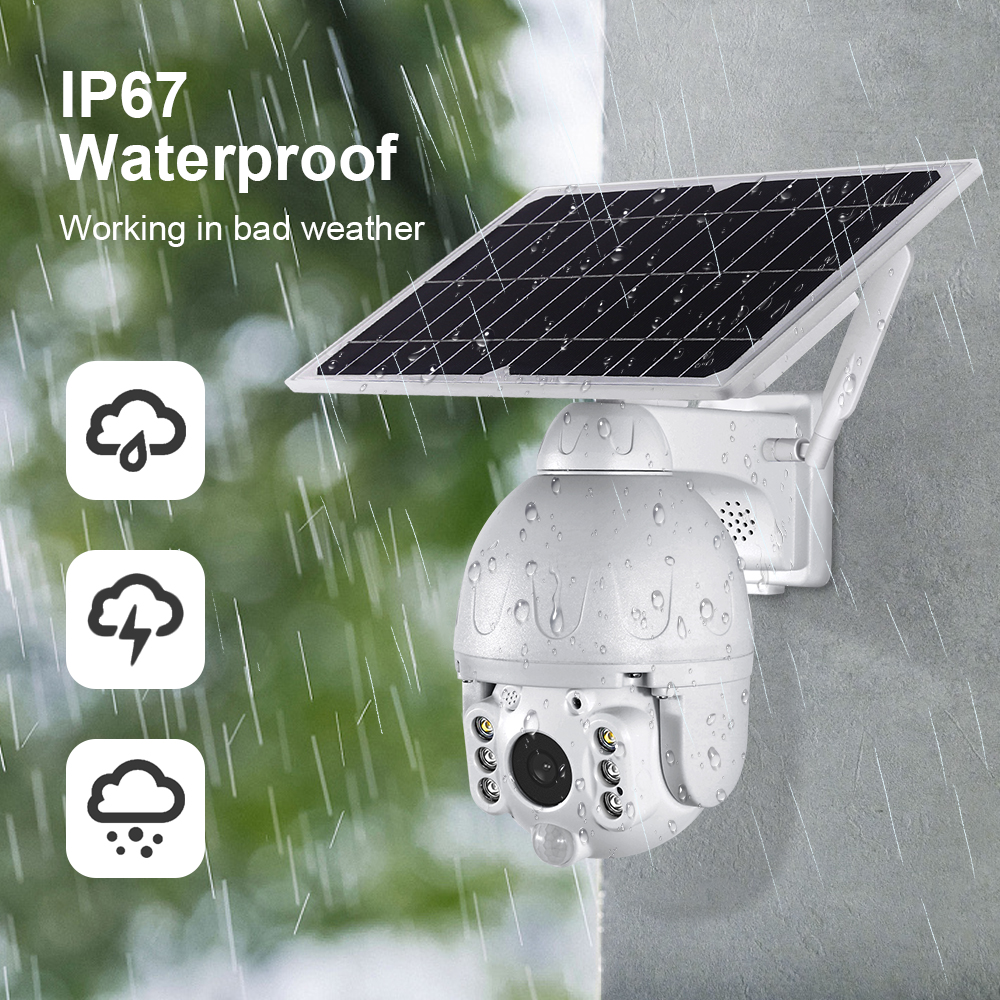

Working environment
|
Indoor/outdoor
|
|
Operating temperature
|
-30°~+60°
|
|
|
Working humidity
|
0%~90%RH
|
|
|
Package
|
Net weight
|
2.5KG/PC
|
|
Color box size
|
290*205*160 mm
|
|
|
Qty
|
6pcs
|
|
|
Gross weight
|
15.6G/CTN
|
|
|
Carton size
|
615*300*360mm
|
|
The role of each part for solar camera:
(1) Solar panels: Solar panels are the core part of the solar power generation system and the most valuable part of the solar power generation system. Its function is to convert the sun’s radiant power into electric energy, or send it to the storage battery for storage, or drive the load to work.
(2) Solar controller: The function of the solar controller is to control the working state of the entire system, and to protect the battery from overcharging and over-discharging. In places with large temperature differences, a qualified controller should also have the function of temperature compensation. In the solar street lamp system, a solar street lamp controller with light control and time control functions is required;
(3) Batteries: generally valve-regulated and maintenance-free lead-acid batteries. In small and micro systems, in areas with cold weather, solar gel batteries are required, which can be used at low temperatures without much impact on efficiency. Its function is to store the electrical energy generated by the solar panel when there is light, and then release it when needed.
(4) Inverter: divided into square wave and sine wave, the direct output of solar energy is generally 12VDC, 24VDC, 48VDC. In order to provide electrical energy to 220VAC electrical appliances, the DC power generated by the solar power generation system needs to be converted into AC power, so a DC-AC inverter is required.
