Image Sensor:
|

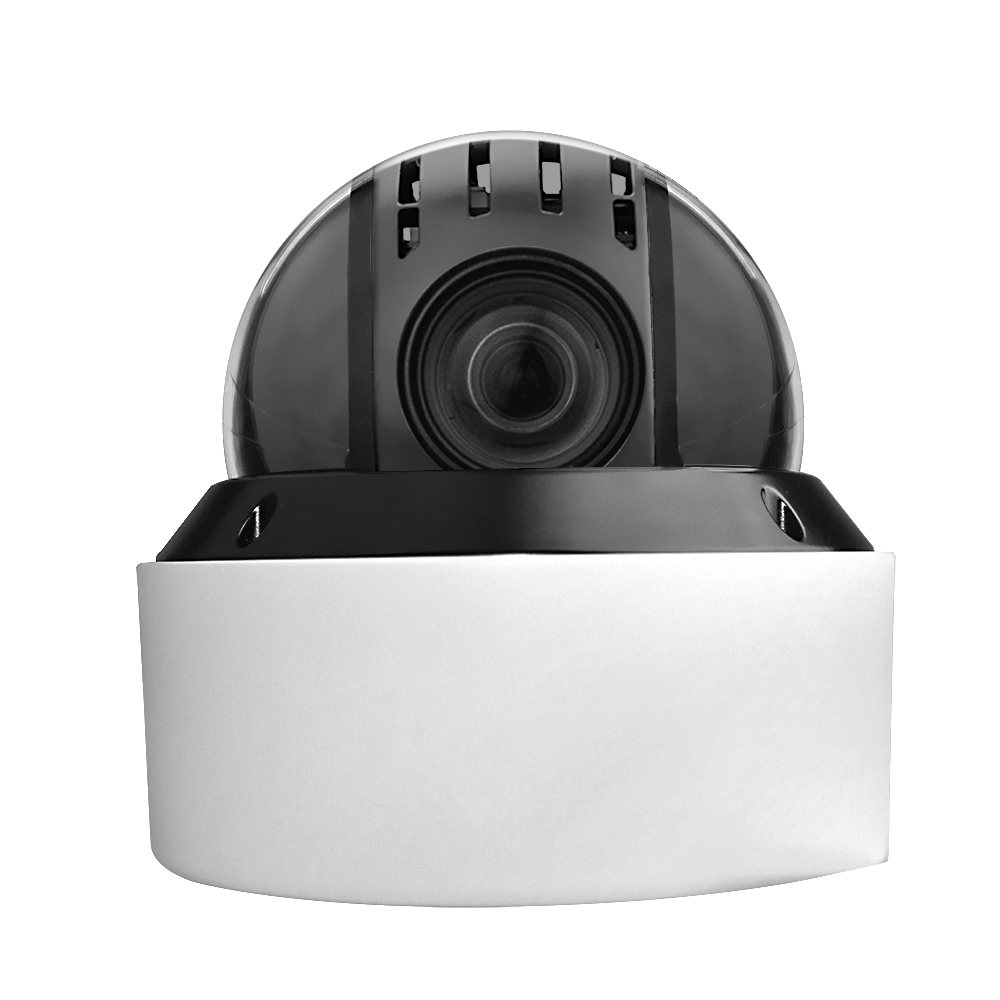

1/2.5″ progressive scan CMOS PTZ 4MP Turbo 50M IR 25x Mini PTZ Dome IP network Camera DT-4B425IW-EF
|
|
Effective Pixels:
|
2560(H)×1440(V)
|
|
Signal System:
|
PAL/NTSC
|
|
Minimum Illumination:
|
Color: 0.005 Lux @(F1.6, AGC ON)
|
|
B/W: 0.001 Lux @(F1.6, AGC ON)
|
|
|
0 Lux with IR
|
|
|
White Balance:
|
Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
|
|
AGC:
|
Auto/Manual
|
|
BLC:
|
ON/OFF
|
|
HLC:
|
Support
|
|
Smart defog:
|
Support
|
|
WDR:
|
120dB
|
|
Shutter Time:
|
1/1 to 1/30,000s
|
|
Day& Night:
|
ICR
|
|
Digital Zoom:
|
16×
|
|
Auto Focus:
|
Auto / Semi-automatic / Manual
|
|
Lens
|
|
|
Focal Length:
|
4.8 mm to 120 mm, 25× optical
|
|
Zoom Speed:
|
Approx. 3.2 s (optical lens, wide-tele)
|
|
Field of View:
|
Horizontal field of view: 57.6° to 2.5° (wide-tele)
|
|
Vertical field of view: 34.4° to 1.4° (wide-tele)
|
|
|
Diagonal field of view: 64.5° to 2.9° (wide-tele)
|
|
|
Minimum Working Distance:
|
10 to 1500mm (wide-tele)
|
|
Aperture Range:
|
F1.6 to F3.5
|
|
Pan & Tilt
|
|
|
Pan Range:
|
360°endless
|
|
Pan Speed:
|
Configurable, from 0.1°/s to 300°/s
|
|
Preset Speed: 350°/s
|
|
|
Tilt Range:
|
-5°~90° (Auto Flip )
|
|
Tilt Speed:
|
Configurable, from 0.1°/s to 160°/s
|
|
Preset Speed: 200°/s
|
|
|
Proportional Zoom:
|
Rotation speed can be adjusted automatically according to zoom multiples
|
|
Number of Preset:
|
300
|
|
Patrol:
|
8 patrols, up to 32 presets for each patrol
|
|
Pattern:
|
4 pattern scans, record time over 10 minutes for each scan
|
|
Power-off Memory:
|
Support
|
|
Park Action:
|
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
|
|
PTZ Position Display:
|
ON/OFF
|
|
Infrared
|
|
|
IR Distance:
|
50m
|
|
IR irradiation angle:
|
Adjustable by zoom
|
|
Alarm
|
|
|
Alarm Input:
|
2
|
|
Alarm Output:
|
2
|
|
Alarm Linkage:
|
Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
|
|

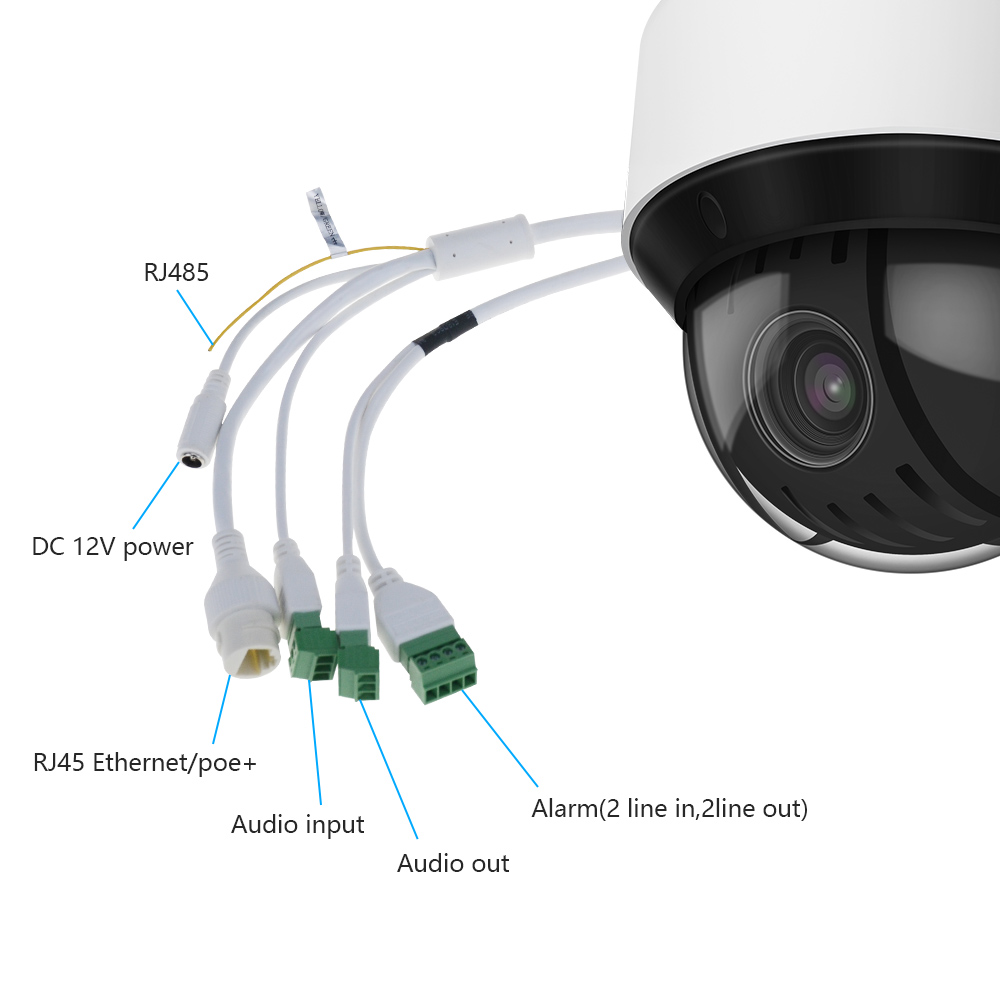

Input & Output
|
|
|
Audio Input:
|
1-ch audio input
|
|
Audio Output:
|
1-ch audio output
|
|
Network
|
|
|
Ethernet:
|
10Base -T, /100Base-TX, RJ45 Connector
|
|
Max.Image Resolution:
|
2560 × 1440
|
|
Main Stream:
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
|
|
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
Sub Stream:
|
50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
|
|
Third Stream:
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
|
|
Video Compression:
|
Main Stream: H.265+/H.265/H.264+/H.264
|
|
Sub-Stream: H.265/H.264/MJPEG
|
|
|
Third Stream: H.265/H.264/MJPEG
|
|
|
Audio Compression:
|
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
|
|
Simultaneous Live View:
|
Up to 20 channels
|
|
Three-Stream:
|
Support
|
|
Storage:
|
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
|
|
Security Measures:
|
User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
|
|
Client GUI
|
|
|
Client:
|
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
|
|
General
|
|
|
Power Supply:
|
12VDC, PoE+
|
|
Power Consumption:
|
Max.: 18W (IR light 5W Max.)
|
|
Working Temperature/Humidity:
|
Outdoor: -30°C to 65°C (-22°F to 149°F)
|
|
Humidity:≤ 90%
|
|
|
Protection Level:
|
IP66 standard (outdoor dome)
|
|
TVS 4,000V lightning protection, surge protection and voltage transient protection
|
|
|
Dimensions:
|
Φ 169 mm × 161 mm (Φ 6.65 × 6.34)
|
|
Weight (approx.):
|
Approx. 2.45kg (5.40lb)
|
The abbreviation of Pan/Tilt/Zoom, the concept of security monitoring equipment, represents the omni-directional (left and right/up and down) movement of the pan/tilt and the zoom and zoom control of the lens. This word is usually mentioned, and it can be easily understood as PTZ control.

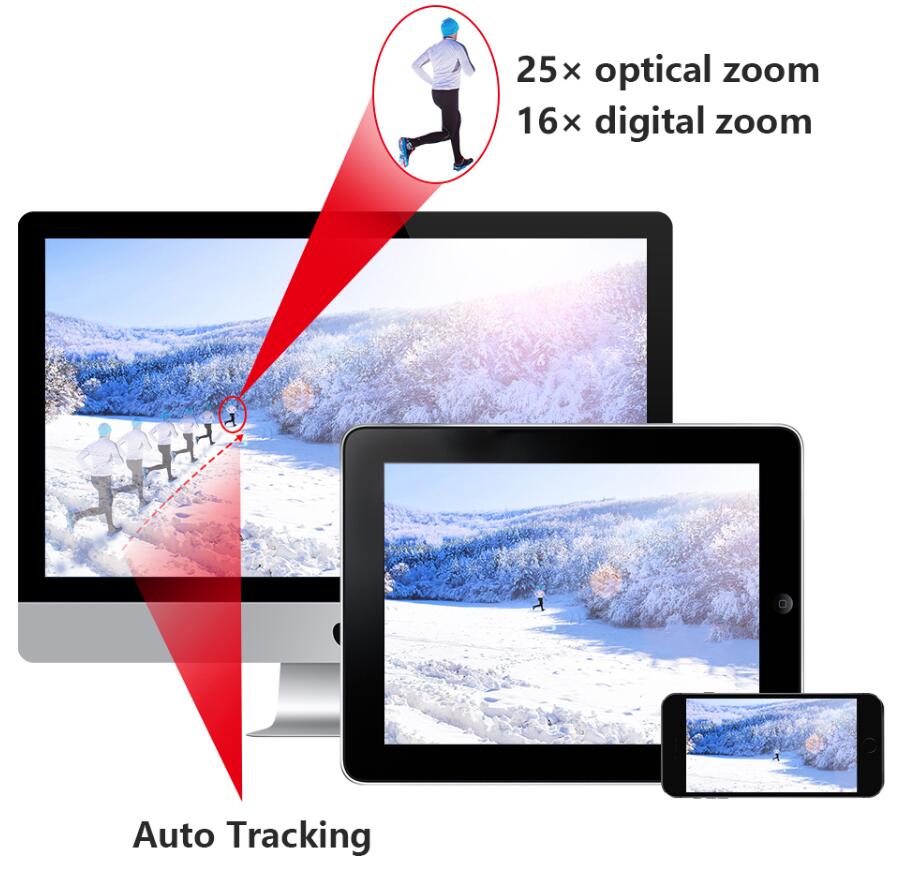

In the scene range monitored by the camera, when a moving target appears, the user can manually lock it (for example, by clicking the mouse to lock the target) or the preset position automatically triggers and locks a moving target to trigger the PTZ camera to perform autonomous and automatic PTZ tracking. And automatically control the PTZ camera’s pan-tilt to rotate in all directions, and perform visual-oriented automatic tracking of the locked moving target to ensure that the tracking target continues to appear in the center of the lens. The automatic PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
