Product name
|
Wifi camera
|
Image sensor
|
1/2.9″ HD CMOS 2 megapixel CMOS sensor
|
|
Processor
|
T21N+F37
|
Built in lens
|
3.6MM
|
|
Working temperature
|
-20℃ -60℃
|
Manual video format
|
MP4(1920*1080P,storage in mobile)
|
|
Video frame rate
|
Maximum 25 frames
|
Video compression standard
|
H.264(Storge in TF card )
|
|
Alarm action
|
Mobile client push screenshot
|
PTZ control
|
Horizontal rotation 320degrees vertical 90degrees
|
|
Video playback mode
|
Mobile client
|
White light effect
|
6 white light lamps, lighting, power consumption 1W
|
|
Supply voltage
|
DC 12V1A
|
Audio input and output
|
Input:built in microphone;output:built-in speaker
|
|
Net weight
|
363g
|
Local storage
|
Support MicroSD inserted 128GB card, support 24 hours of video or video alarm
|
|
User settings
|
Max share to 5 users
|
Support multiple protocols
|
TCP/UDP/IP/HTTP/SMTP/DHCP/DDNS/UPNP/NTP
|
|
WiFi protocol
|
Support IEEE 802.11b/g/n
|
Video control / Motion detection/Cloud Storage
|
Support
|
|
Focusing method
|
Manual
|
Product size
|
13*9.3*14cm
|
|
Applicaton
|
Outdoor
|
Accessories
|
Color box/Instructions/inner support/Screw package
|
|
Certificate
|
CE &ROHS
|
Warranty
|
1 years
|
|
Firmware upgrade
|
Remote upgrade through the network
|
Infrared night vision effect
|
4pcs ir lights,night vision 10 meters,power consumption 1W;Control the ir light and IR-CUT switch through photoresistance
|
Have 12 leds or 50 leds for choices:

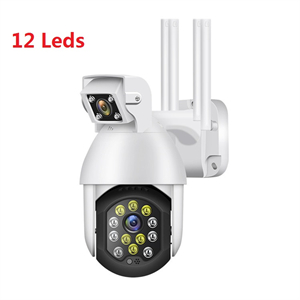

-12 leds:
Camera 1:
6MM lens,4 pcs ir lights
Camera 2 :
3.6mm lens ,12pcs leds (6 pcs IR Lights,6 pcs white light )

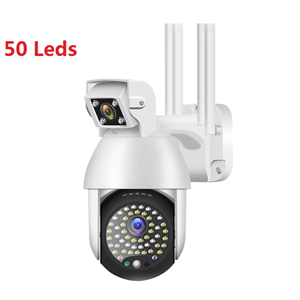

-50 leds :
Camera 1:
6MM lens,4 pcs ir lights
Camera 2 :
3.6mm lens ,50pcs leds(18 pcs IR Lights,18 pcs white light + 1 red alarm light + 1 blue alarm light )
Main features :
1080P,2.0MP,Wireless&Wired,2 way audio,support max 128GB TF Card&Cloud Storage
(APP :YCC365 PLUS),Supports auto human body tracking

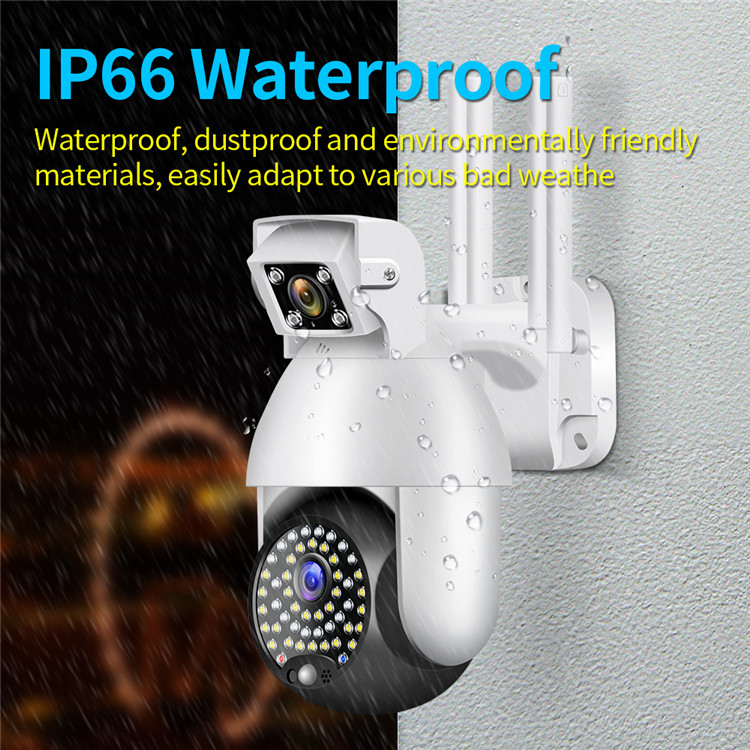

1.Outdoor Use,Waterproof IP 66
2.support ONVIF2.0 protocol, and can connect with mainstream NVR
3.Two Way Audio,auto tracking function ,Pan Tilt function (Pan 320 degree/ Tilt 90 degree)
4. Wi-Fi/802.11/b/g/n .
5. Motion detection,Support remote switch video, support simultaneous viewing by multiple people, computer
6. Iphone, Android Smartphone supported
7. Color: Black. P2P, PNP: Plug&play
