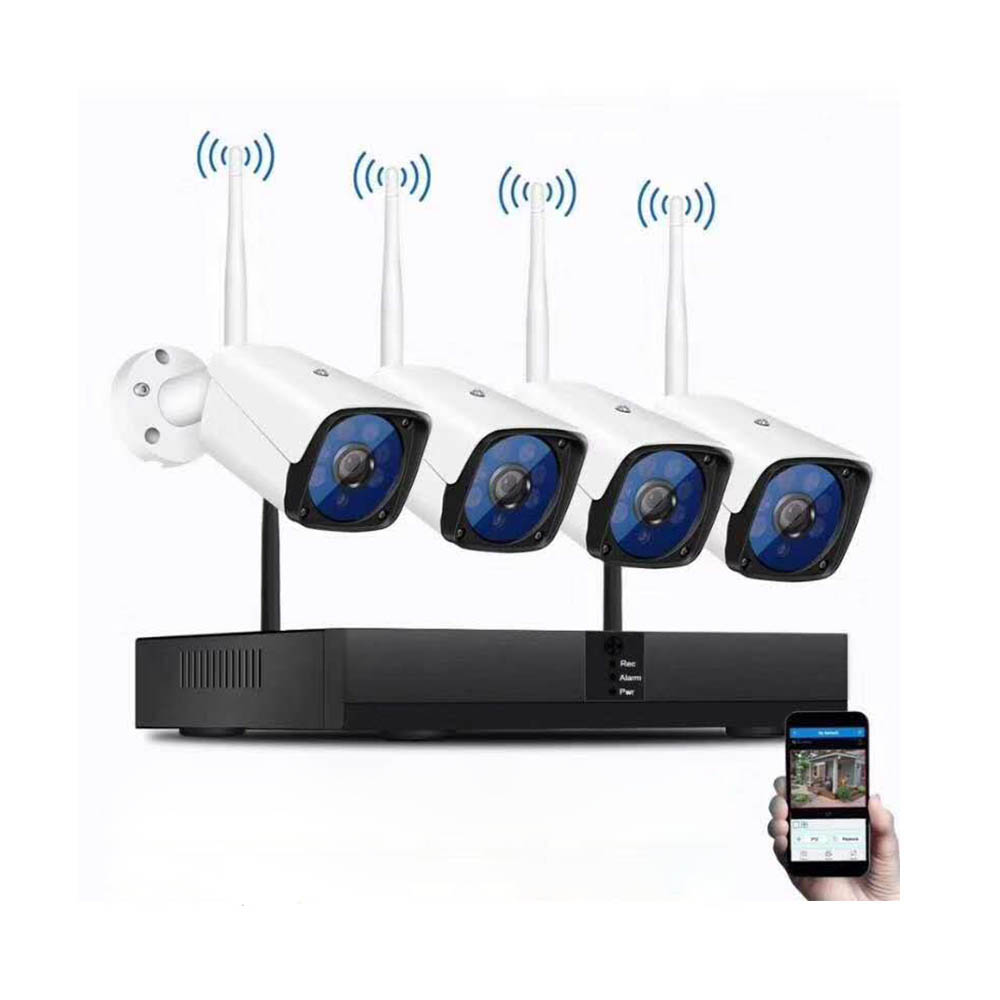

Item
|
4Ch wireless NVR
|
|
|
NVR resolution
|
720P (1280 * 720) or 1080P (1920 * 1080)
|
|
|
Video Input
|
4Ch
|
|
|
operating system
|
LINUX OS
|
|
|
Screen menu
|
1/4 screen (4Ch NVR)
|
|
|
registration mode
|
Manual / programmable / motion
|
|
|
Compression format
|
H.264 (720 P) or H.265 (1080 P)
|
|
|
playback sync
|
4-channel
|
|
|

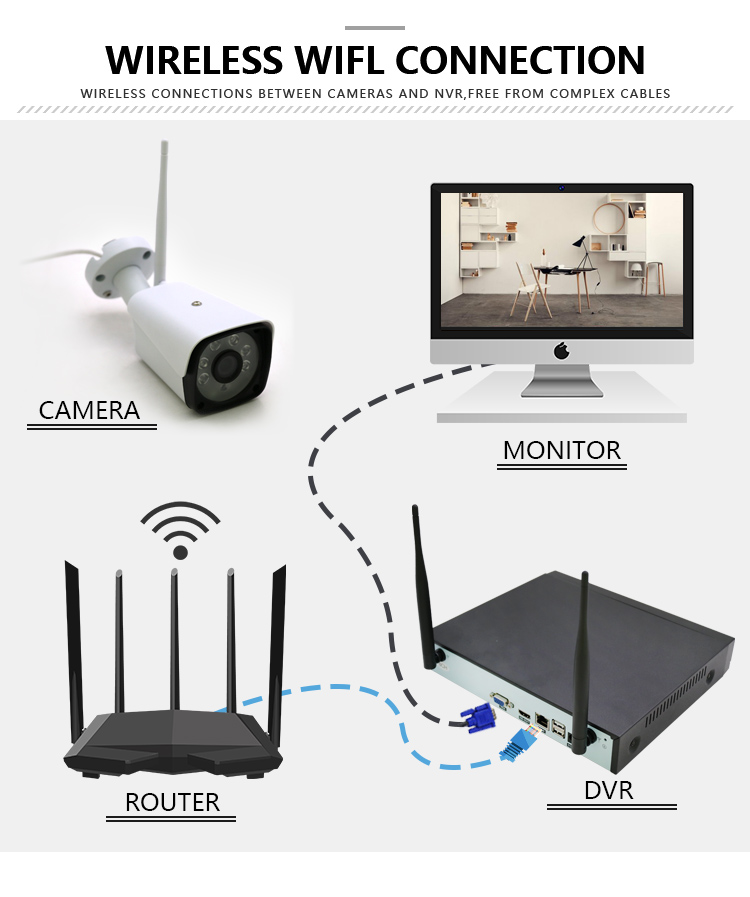

Connect
|
Automatic connection between NVR and IPC
|
|
|
OSD language
|
English, German, French, Spanish, Italian, Japanese, etc.
|
|
|
Support HDD
|
3.5-inch SATA port, maximum capacity 4TB (HDD not included)
|
|
|

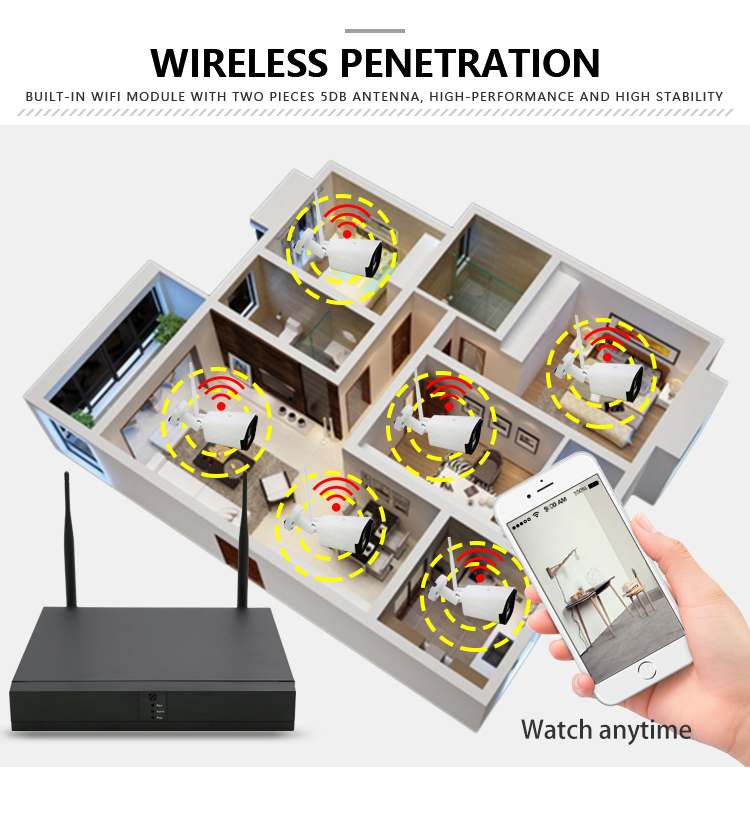

WIFI
|
Integrated WIFI module with two 5db antenna parts, high performance and high stability
|
|
|
Connection distance
|
100 m (open), 20 m (obstacles)
|
|
|
WiFi Protocol
|
802.11b / g / n, dual WiFi antennas
|
|
|
Power consumption
|
<= 5 W (without hard disk)
|
|
|
APP OS
|
Support for Android / iOS phone or pad
|
|
|
Protocol
|
HTTP SMTP PPPOE FTP … UPnP … Onvif
|
|
|
NVR size (L * W * H)
|
255 * 215 * 43cm
|
|
|
NVR weight
|
1.48kg
|
|
|
Power supply
|
12 V / 2A
|
|
|
Item
|
Wireless IP Camera 1080P
|
|
|
Image sensor
|
1/2.8 progressive scan sensor
|
|
|
Resolution
|
1080 P
|
|
|
Pixels
|
2.0MP 1920×1080
|
|
|
Focus
|
3.6mm fixed lens
|
|
|
Day and night
|
Double filter ir-cut circuit
|
|
|
Minimum illumination
|
0.1Lux (IR); 0.01Lux (B / W)
|
|
|
IR distance
|
6 units LED IR, 15-20 meters
|
|
|
Video standard
|
H.264 H.265
|
|
|
Bit rate
|
32 Kbps ~ 4 Mbps supports CBR / VBR
|
|
|
frame
|
15fps
|
|
|
Privacy mask
|
4 Configurable regions
|
|
|
WiFi Protocol
|
802.11b / g / n 150Mbps
|
|
|
Operating conditions
|
-30 ° C ~ 60 ° C, humidity 95% or less (no condensation)
|
|
|
Power supply
|
12 VDC 10%, power consumption 6 6 W
|
|
|
Housing material
|
Aluminum alloy, IP66 waterproof
|
|
|
Camera size (L * W * H)
|
66 * 91 * 62mm, Total length 171mm (camera with stand)
|
|
What is the difference between a POE camera and a non-POE camera?
1. POE camera
The POE camera can supply power to the camera through the network cable. Only one network cable is needed for power supply, which can transmit data and current at the same time, and the power supply signal is available.
This POE can eliminate the need to arrange cables and power strips, and the camera deployment point can be selected in a variety of ways, which is not limited by the power supply. And the advantages of centralized power supply can be realized. At the same time, it has energy saving, safety, lightning protection and so on.
2.Non-POE camera
Non-POE power supply means that each camera has a separate power supply.
It is generally recommended to use non-POE power supply for long distances, and POE can be considered for short distances.
