Product Name
|
|
|

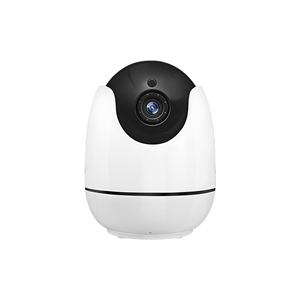

CAMERA (TX)
|
|
|
Image Sensor
|
720P 1/4-inch CMOS
|
|
Camera Resolution
|
1280X720, real 25fps
|
|
Chipset
|
SONIX RTOS low-power consumption full HD chipset
|
|
Field of viewing angle
|
70°(Horizontal）3.6mm720P HD lens
|
|
Night Vision
|
940 nm invisible LEDs, >5LUX (IR OFF）/<0LUX（IR ON）
|
|
IR Range
|
3~5m
|
|
Pan/Tilt
|
Pan: 0 ~3550, Tilt: 0~900
|
|
Video Code Rate
|
32kbps-8Mbps
|
|
Audio Compression
|
PCM
|
|
Audio Transmission
|
Two-way voice intercom（Half Duplex, Microphone, Speaker）
|
|
Wireless
Transmission Way |
2.4GHz FHSS /700 ~ 900 ft (210m ~ 270m), antenna inside
|
|
Sound Sensitivity
|
High 65dB/Medium 70dB/Low 80dB
|
|
Temperature Alarm
|
Temperature sensor, ＜15C0/59F0, ＞29C0/84F0
|
|
Alarm Mode
|
sound detection/temperature/video loss/feeding wake-up/low battery
|
|
Interface
|
USB power supply, Pair button( beep sound when pairing)
|
|
Power Supply
|
5V1.5A (USA/EU/UK) USB
|
|
Working Current
|
900mA(motor rotation and LEDs ON), 260mA (Normal)
|
|
Mounting Bracket
|
Bracket with wall, ceil and desk, mounting screw
|
|
Material
|
Plastics
|
|

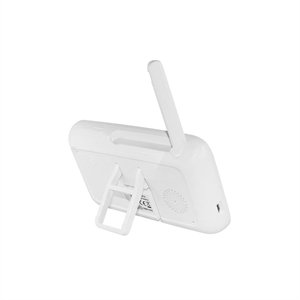

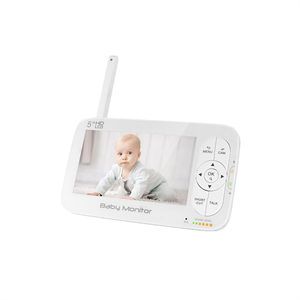

MONITOR (RX)
|
|
|
Display screen Size
|
5” (screen A)
|
|
Resolution
|
1280X720, real 25fps
|
|
Key
|
MENU/CAM/OK/UP/DOWN/LEFT/RIGHT/SHORT-CUT/TALK
|
|
Software Menu
|
CAMERA PAIR/ SOUND DETECTION/ TEMPERATURE ALARM/LANGUAGE /LULLABIES /SLEEP MODE /FEEDING/SETTINGS
|
|
Screen Alarm
|
sound detection/temperature/video loss/feeding wake-up/low battery
|
|
Screen Off
|
Manual / auto (Sleep mode)
|
|
Indicator
|
POWER/CHARGER/MIC/SOUND LEVEL
|
|
Video Input
|
Support one channel, up to 4 channels, loop mode display
|
|
Audio Input
|
Built-in Microphone, Speaker
|
|
Interface
|
USB power supply and charging port
|
|
Power Supply
|
5V1.5A (USA/EU/UK) USB
|
|
Working Current
|
350mA(screen on)/230mA (screen off)
|
|
Li-polymer battery
|
2000mA pure cobalt, ＞5 hours(screen always on)
|
|
Size
|
156Lx83Hx24D mm(screen A)
|
|
General
|
|
|
Storage Temperature
|
-20C0 ~+60C0
|
|
Operation Humidity
|
15%~85%
|
|
Package
|
Box
|

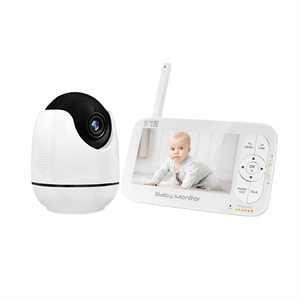

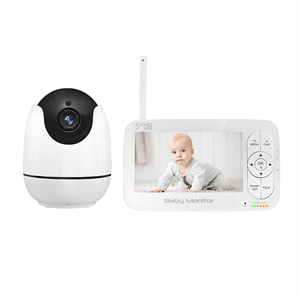

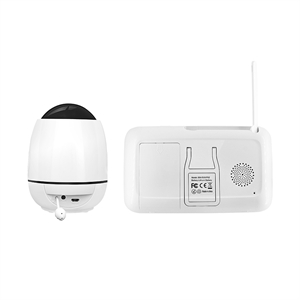

Baby monitor, also called baby monitor or baby monitor, English translation is baby monitor, belongs to the wireless home safety protection system, consists of a caregiver (also called a monitoring terminal or a baby terminal) and a display (also known as a control terminal or a parent terminal) It consists of two parts, placing a caregiver in the baby’s room, that is, the safety of the baby can be monitored at any time through the display. Baby monitor is a family security product. This product uses the monitoring terminal to provide real-time monitoring of the baby’s every move and every word and deed. The monitoring results are sent to the control terminal on the guardian’s hand through radio waves of analog or digital signals. On the device, and restore to video or audio. By using a baby monitor, parents or guardians no longer need to stay by the side of the baby or child to understand their behavior, and avoid frequent viewing that affects the baby’s rest, and can immediately detect abnormal situations when they occur. And deal with it. Baby monitors are not only the best daily care products for infants and young children, but also an indispensable helper for caring for the elderly and patients.
