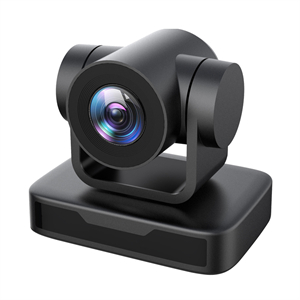

USB HD PTZ Video Conference Camera New Conference System Solution

Camera Parameters:

Image Sensor

1/2.9 inch high quality HD CMOS sensor

Effective Pixels

2.1 megapixel

Focal Length

f=3.35~10.05mm  F1.7(W)~3.0(T)

Optical Zoom

3x

View Angle

30°(tele) ~ 85°(wide)

Video Format

1080P, 720P

Video Output

MINI DIN6

Minimum Illumination

0.5Lux

Gain Control/Focus

Auto/manual

SNR Ratio

≥55dB

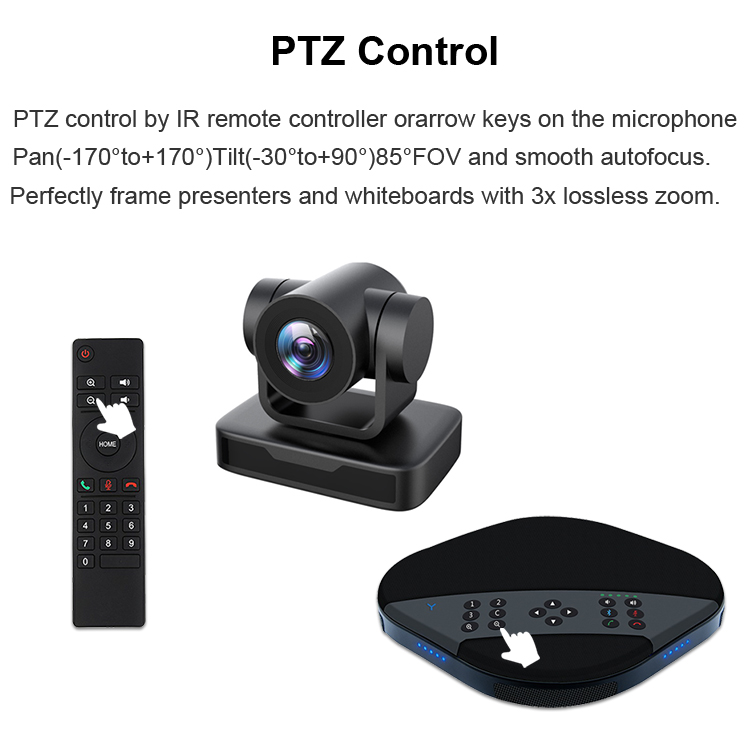

Pan Movement Range

±170°

Tilt Movement Range

-30 °~+90°

Pan Control Speed

0.1° ~ 60°/sec

Tilt Control Speed

 0.1°~30°/sec

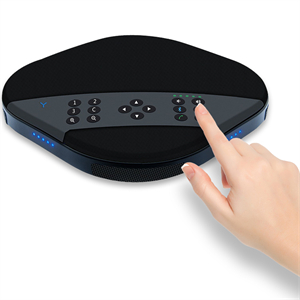

Microphone Parameters:

Bluetooth

Bluetooth devices available

Voice Technical Parameters

 Acoustic echo cancellation(AEC): >65dB

Echo length cancellation:≥400ms

Birdirection noise compression:<25dB

Automatic direction finding technology of intelligent microphone(EMI) Automatic gain control(AGC)

Audio Parameters

Microphone frequency response:100Hz-22Hz

Speaker frequence response: 100Hz-22Hz

Speaker volume: 95dB at the most

Microphone sound-pickup diameters: 6m, 360 degrees full range

Expansion Mic(optional)

2 external microphones optional for connection makes the sound-pickup diameter up to 10m

IR Reception

Angle:360 °

Distance: 10m, IR transparent transmission available

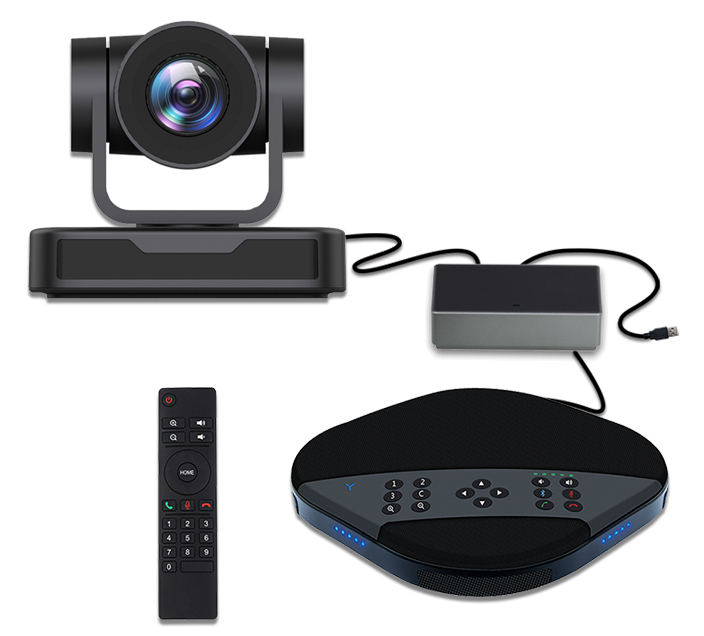

Hub Parameters:

Hub Interface

MINI DIN6*2, power switch*1, USB3.0 interface*1

Connection Cable

Mini DIN6 data line*2;

Length: 5m (10m/15m for options)

USB Cable

USB 3.0 cable

Compatibility

Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers compatible with Zoom,Lynch, Vidyo,Skype, Webex, Goto meeting, CISCO, Vmix, Lifesize, etc.

Power Supply

EC3800 plug(DC12V) A dapter input AC100V-AC220V; output DC12V/1.5A

Product size

115(W)x34(H)x115(D)mm

Package Size:

Product size

445(W)x175(H)x320(D)mm after packaging

N/G Weight

4.09kg Gross weight
